Prologue
Hello guys, Gade here, to do a blog that I had promised a long time ago. It will be about how to do SVG's on mobile, as the title suggests, with the help of the Boxy SVG Editor!
Some Clarifications
Before starting, I unfortunately need to say that Boxy SVG only has a 15 day free trial that starts when you make an account, but at least you don't need to put credit card beforehand.
For those interested, after the trial ends it costs 10€ per year.
Also, I believe that it is not as good as inkscape which the pc users have the privilege to use freely, but it's all we have...
Getting the SVG Maps
So, as one would imagine, you would need to get a map first to base your SVG on. For that there are many methods:
1. Go to geojson-maps, put high resolution and click on the countries you want for a quiz and then press "Build Custom GeoJSON" and then download. This is especially useful for a "Countries Bordering" quiz. Although, clicking small countries is literally impossible.
Anyway, after that, you go to mapshaper.org and select the file and when pressing export in the top-right corner you should select the file to be SVG and lastly export
2. You can go search in Wikimedia Commons for SVG files. But getting the SVG is a bit complicated. So I'll break it down in pictures
1. Go to geojson-maps, put high resolution and click on the countries you want for a quiz and then press "Build Custom GeoJSON" and then download. This is especially useful for a "Countries Bordering" quiz. Although, clicking small countries is literally impossible.
Anyway, after that, you go to mapshaper.org and select the file and when pressing export in the top-right corner you should select the file to be SVG and lastly export
2. You can go search in Wikimedia Commons for SVG files. But getting the SVG is a bit complicated. So I'll break it down in pictures
The best I could do...

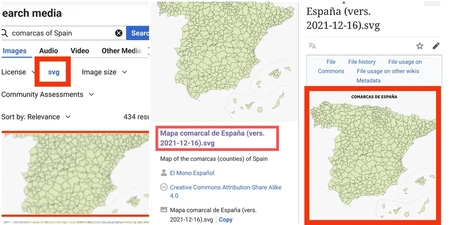

In the 1st picture, as you can see, we are in the search menu and have typed what we want with the file type set to SVG. When we find our ideal one, we just press it. In the 2nd picture, we must press the link that I've circled and only in the 3rd picture which is where the link takes us, will we hold down the picture and press "Download Link", which should do the trick.
3. Last way to get maps was said to me by Astana. Basically use AmCharts and go download your preferred country. This is especially good for provinces!
3. Last way to get maps was said to me by Astana. Basically use AmCharts and go download your preferred country. This is especially good for provinces!
Making the SVG
Now, to actually make the SVG!
Go to Boxy SVG and create an account which will require email and a password(oh and authentication for said email, nevermind just follow their instructions)
First of all, I recommend computer mode for this site, as the mobile mode is just...horrific
So to start, every time you open the app you'll get greeted by a stupid cherry template. To get rid of that, press "file" and then "new" in the top-left corner of the interface. After that, again from "file" press "import" and press the SVG you want to create. Also, to undo something press the edit button on the top of interface and then undo.
Now the juicy part begins...
First of all, I recommend computer mode for this site, as the mobile mode is just...horrific
So to start, every time you open the app you'll get greeted by a stupid cherry template. To get rid of that, press "file" and then "new" in the top-left corner of the interface. After that, again from "file" press "import" and press the SVG you want to create. Also, to undo something press the edit button on the top of interface and then undo.
Now the juicy part begins...

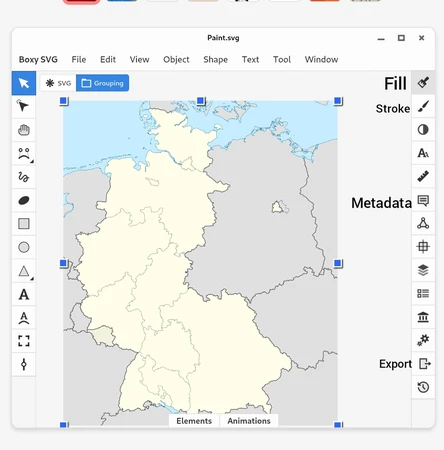

These 4 things on the right are what we will play with
• Fill is about literally filling up everything you have. You can also directly copypaste colours. That is where you'll see if the SVG is actually good to do or just a waste of time. Some older SVG's (from commons especially) are bad and don't have proper paths hence the filling will get hella messy. So just scrap the idea
• Stroke is about the borders. Same as fill, but you need to "activate" the borders first, but it also has a "width" cursor, which you might want to play with

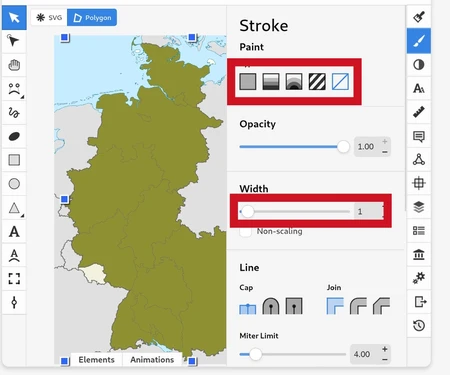

You see the 5 buttons I circled? To "activate" the borders you need to press the left one
• Metadata is about the SVG path names. Nothing too hard, but just make sure that you have pressed the whole map first and have ungrouped it and then press separately on each area you want. You must put the names you want for each area, where it says ID, if none exist already. (Names do exist already in AmCharts and many Wikimedia maps, so no need to change them, if so). These names will be the SVG paths you will use in the quiz
• Export is the last one you're gonna use. Make sure you have pressed the map, then select all, then group again, to get it all in one piece and then you press the "+" button on the export menu and then SVG. Lastly press the export button down there and it's done!
• Export is the last one you're gonna use. Make sure you have pressed the map, then select all, then group again, to get it all in one piece and then you press the "+" button on the export menu and then SVG. Lastly press the export button down there and it's done!

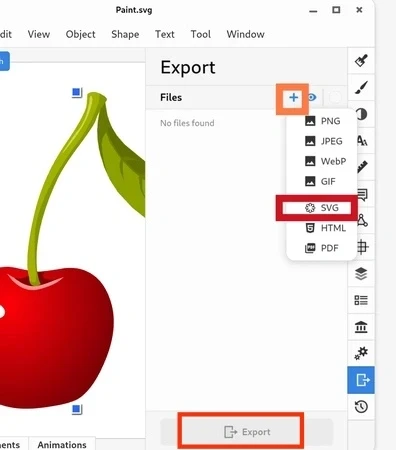

The buttons highlighted are the ones you are gonna press in the export menu!
Colours in the SVG
This part may come off as redundant, as it already exists in Stewart's guide, but I'll just copypaste the colours and their uses here too.
#64BEFF - JetPunk ocean blue
#FFFF80 - JetPunk country yellow
#BEEDFF - JetPunk light water blue
#BBBBBB - JetPunk surrounding paths (e.g. Turkey on the Europe map)
#888888 - JetPunk disputed territories
#707070 - JetPunk country borders
#FF9900 - JetPunk cities / microstates (often at 70% fill opacity)
#64BEFF - JetPunk ocean blue
#FFFF80 - JetPunk country yellow
#BEEDFF - JetPunk light water blue
#BBBBBB - JetPunk surrounding paths (e.g. Turkey on the Europe map)
#888888 - JetPunk disputed territories
#707070 - JetPunk country borders
#FF9900 - JetPunk cities / microstates (often at 70% fill opacity)
Importing into your Quiz
From here on, it gets simple!
You just create the quiz you wanted, the type being text and in the answers you put a hint column in the left, which will be where the SVG Paths go. Lastly you import your SVG, which must be below 600kb. If not, I guess there are some good SVG compressors which can help or you delete unwanted stuff, like water in many cases.
Creating the quiz on JetPunk and the SVG can be done at the same time!
You just create the quiz you wanted, the type being text and in the answers you put a hint column in the left, which will be where the SVG Paths go. Lastly you import your SVG, which must be below 600kb. If not, I guess there are some good SVG compressors which can help or you delete unwanted stuff, like water in many cases.
Creating the quiz on JetPunk and the SVG can be done at the same time!
Epilogue
That was it! My very own mobile SVG Guide. I know it's not perfect, but it's the best I can do by explaining on a blog. So I will let you play with it, as the stuff I explained is very basic...
Fingers crossed that it's understandable...
Anyway, if you have any questions, feel free to ask!
Αντίο φίλοι!
